Missing user profile picture after updating mysite host URL in SharePoint 2013

Recently I had to change mysite host URL in one of our environment. After I update my site hots URL and ran full user profile sync. Everything was working fine until I noticed that user images are not appearing inside user profiles.

I have started looking into the issue and done the following steps to figure out the problem

I have checked the user profile “Picture” property to make sure that It is mapped to “PhotoThumbnail” property of active directory

Then I have checked that the Farm account have permissions on User profiles

Using the farm account I have ran the photo import command again

Update-SPProfilePhotoStore –MySiteHostLocation http://mysiteHostUrl –CreateThumbnailsForImportedPhotos $true

With help of miisclient.exe I have confirmend that the picture property is pull the binary information from active directory.

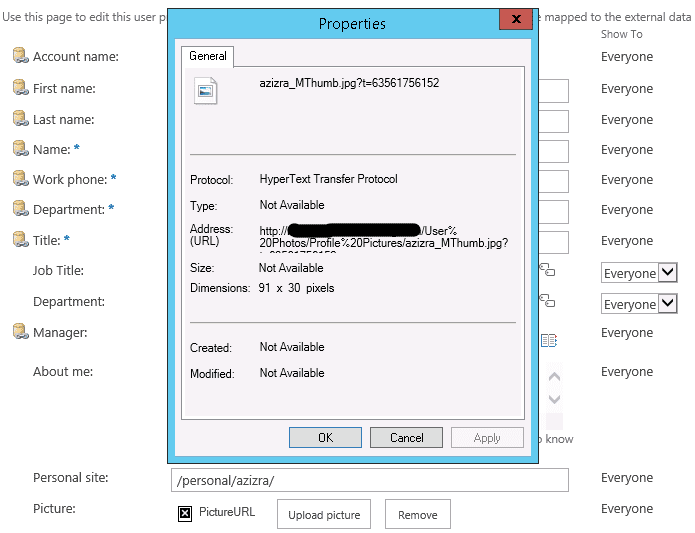

I then went to my profile and right click on the “PictureURL” and selected “Properties” option which open up the “Properties” popup window. Suddenly I realised that the URL of my user profile picture is still pointing to the old my site.



I have copied the above picture URL in the browser, updated the “mysite” host URL to new one and hit enter. I was managed to see my profile picture as below.



At last I managed to find the issue. Now it’s time to fix it. So I wrote below PowerShell command to update all user profile picture properties URL.

$mySiteNewHostURL = "http://NewMySiteHostURL"
$mySiteOldHostURL = "http://OldMySiteHostURL"
$mySite = Get-SPSite $mySiteNewHostUrl
$SPServiceContext = Get-SPServiceContext $mySite
$userProfileManager = New-Object Microsoft.Office.Server.UserProfiles.UserProfileManager($SPServiceContext)
$userProfiles = $userProfileManager.GetEnumerator()
foreach ($userProfile in $userProfiles)
{
#check if the picture property contain image URL, then replace it with new my site host URL
if ($userProfile["PictureURL"] -ne '')
{
$oldImageUrl = $userProfile["PictureURL"].toString()
$newImageUrl = $oldImageUrl -Replace $mySiteOldHostURL, $mySiteNewHostURL
write-host "Old Image Link = " $oldImageUrl " --> New Image Link = " $newImageUrl
$userProfile["PictureURL"].Value = $newImageUrl
$userProfile.Commit()
}
}

After I ran above PowerShell script, I was able to see  picture inside my user profile as below. Happy coding
